Pressure Sensor Sales

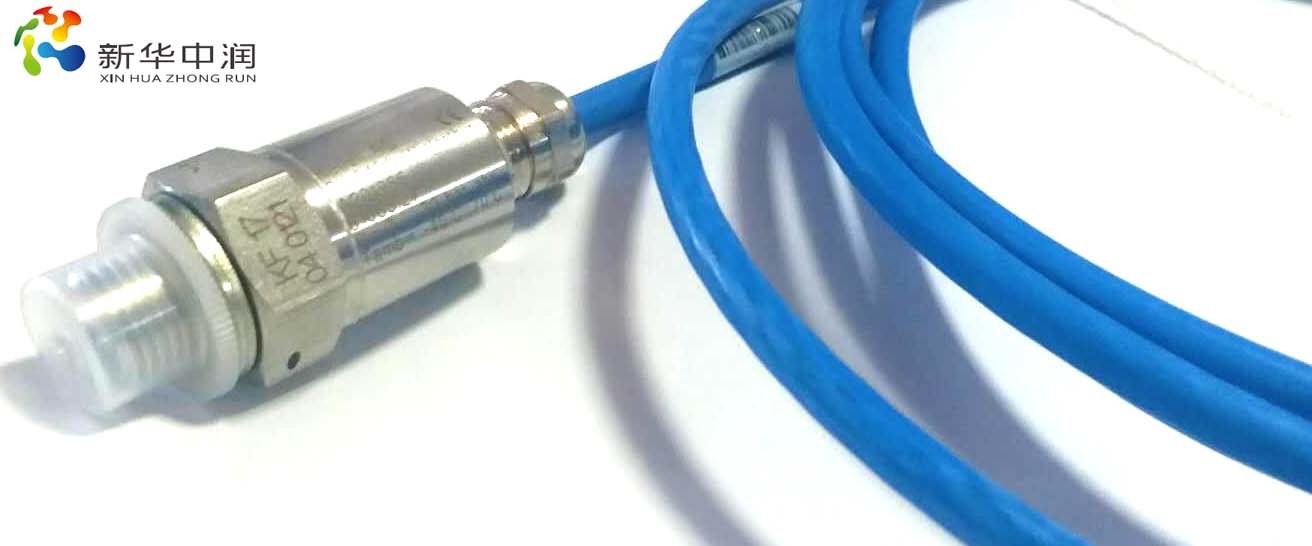

      Pressure SensorInstalled on the straight pipe section after the flow meter or on the body of the meter, the pressure sensor takes pressure from the flow meter.

The accuracy of temperature and pressure compensation sensors meets the overall accuracy requirements of the flow meter measurement system.

This device is specifically designed for the CORUS PTZ correction instrument.

A pressure sensor is a device that can sense pressure signals and convert them into usable output electrical signals according to certain rules.

Pressure sensors typically consist of pressure-sensitive elements and signal processing units. Depending on the type of test pressure, pressure sensors can be classified into gauge pressure sensors, differential pressure sensors, and absolute pressure sensors.

Pressure sensors are commonly used in industrial practice and are widely applied in various industrial automatic control environments, involving numerous industries such as hydropower, railway transportation, smart buildings, production automation, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, and pipelines. Below is a brief introduction to some commonly used sensor principles and their applications. There are also medical pressure sensors.

　　Pressure SensorIt is a widely used type of sensor. Traditional pressure sensors mainly consist of mechanical structure devices that indicate pressure through the deformation of elastic elements, but this structure is large and heavy, and cannot provide electrical output. With the development of semiconductor technology, semiconductor pressure sensors have also emerged. Their characteristics include small size, light weight, high accuracy, and good temperature characteristics. Especially with the development of MEMS technology, semiconductor sensors are evolving towards miniaturization, and they have low power consumption and high reliability.

Wiring methods for pressure sensors:

Wiring of sensors has always been one of the consultation issues during the customer procurement process. Many customers do not know how to connect the sensors. In fact, the wiring methods for various sensors are basically the same. Pressure sensors generally have two-wire, three-wire, and four-wire configurations, and some even have five-wire configurations.

The two-wire configuration of pressure sensors is relatively simple, and most customers know how to connect it. One wire connects to the positive terminal of the power supply, and the other wire, which is the signal wire, connects through the instrument to the negative terminal of the power supply. This is simple. The three-wire configuration adds one wire to the two-wire configuration, which connects directly to the negative terminal of the power supply, making it a bit more complicated than the two-wire configuration. The four-wire pressure sensor definitely has two power input terminals, and the other two are signal output terminals. Most four-wire configurations output voltage rather than 4~20mA. The 4~20mA type is called a pressure transmitter, which is mostly made into a two-wire configuration. Some pressure sensors output signals that are not amplified, with full-scale outputs of only a few dozen millivolts, while some pressure sensors have internal amplification circuits, with full-scale outputs of 0~2V. As for how to connect to the display instrument, it depends on the range of the instrument. If there is a range that matches the output signal, it can be measured directly; otherwise, a signal adjustment circuit needs to be added. The five-wire pressure sensor is not much different from the four-wire configuration, and five-wire sensors are relatively rare on the market.
